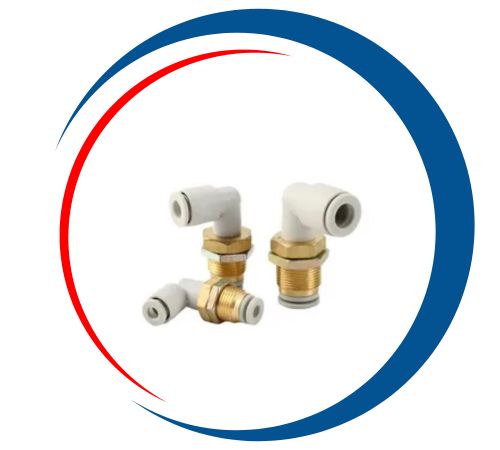

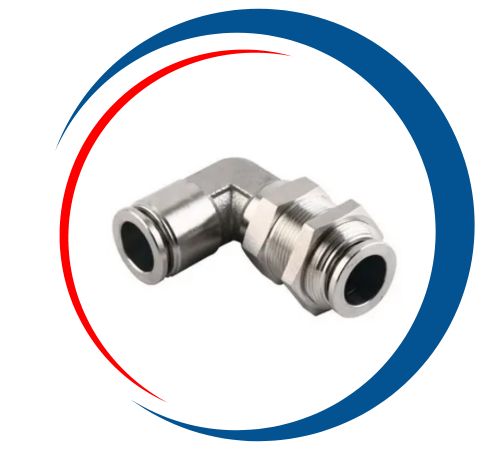

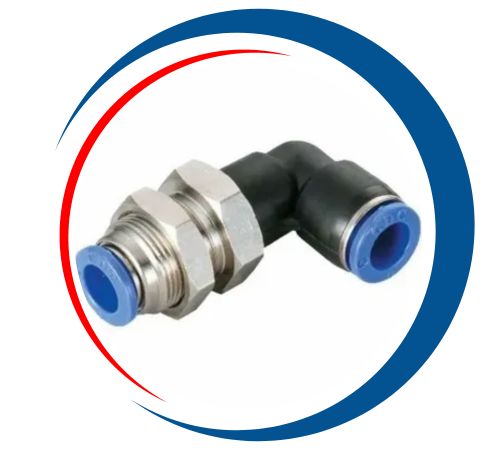

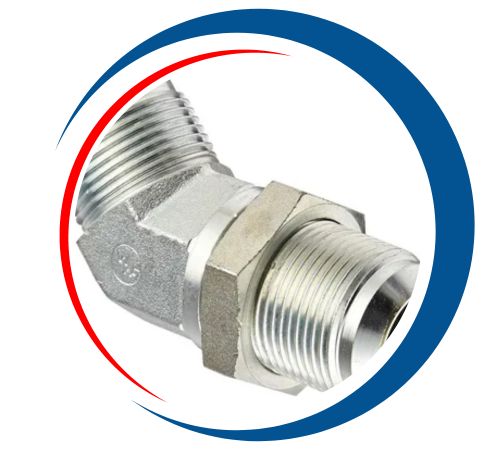

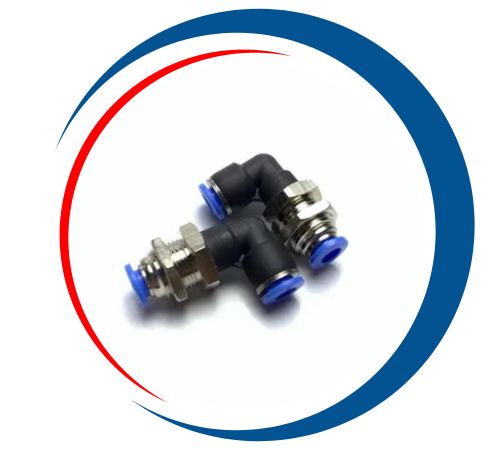

Ayhan Tube Fittings is a leading manufacturer and distributor specializing in high-quality Bulkhead Union Elbows. With a commitment to excellence, we provide innovative plumbing solutions that meet the diverse needs of industries ranging from marine to aquaculture. Our Bulkhead Union Elbows are engineered for durability and performance, ensuring a secure and leak-proof connection at a 90-degree angle. With a focus on precision and quality, we cater to both domestic and international markets, delivering products that stand the test of time. Trust Ayhan Tube Fittings for reliable fittings that enhance the efficiency and safety of your piping systems.
Bulkhead Union Elbows are typically composed of high-quality materials such as brass, stainless steel, or PVC, ensuring durability and corrosion resistance. Their mechanical properties include excellent tensile strength, impact resistance, and pressure tolerance, making them suitable for various applications. Advantages of Bulkhead Union Elbows include easy installation and maintenance, a watertight seal, and the ability to connect pipes at a 90-degree angle, which optimizes space and improves flow efficiency. These fittings are ideal for marine, aquaculture, and industrial settings, providing long-lasting and reliable performance.
| Mcneil part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | ODT-ØT(INCHES) | C | BODY HEX F | ODT-ØT1(INCHES) | Ø E | D | L | NUT HEX W | L1 |
| 1-BUD | -100-61 | 1BC1 | 1/16 | 0.43 | 5/16 | 1/16 | 0.05 | 0.34 | 0.84 | 5/16 | 1.24 |
| 2-BUD | -200-61 | 2BC2 | 1/8 | 0.60 | 7/16 | 1/8 | 0.09 | 0.50 | 1.50 | 7/16 | 2.02 |
| 3-BUD | -300-61 | 3BC3 | 3/16 | 0.63 | 9/16 | 3/16 | 0.12 | 0.54 | 1.59 | 7/16 | 2.11 |
| 4-BUD | -400-61 | 4BC4 | 1/4 | 0.70 | 5/8 | 1/4 | 0.19 | 0.60 | 1.03 | 9/16 | 2.27 |
| 5-BUD | -500-61 | 5BC5 | 5/16 | 0.73 | 11/16 | 5/16 | 0.25 | 0.64 | 1.81 | 5/8 | 2.39 |
| 6-BUD | -600-61 | 6BC6 | 3/8 | 0.76 | 3/4 | 3/8 | 0.28 | 0.66 | 1.87 | 11/16 | 2.45 |
| 8-BUD | -810-61 | 8BC8 | 1/2 | 0.86 | 7/8 | 1/2 | 0.41 | 0.90 | 2 | 7/8 | 2.80 |
| 10-BUD | -1010-61 | 10BC10 | 5/8 | 0.86 | 1-1/16 | 5/8 | 0.50 | 0.96 | 2.06 | 1 | 2.86 |
| 12-BUD | -1210-61 | 12BC12 | 3/4 | 0.86 | 1-3/16 | 3/4 | 0.63 | 0.96 | 2.31 | 1-1/8 | 3.11 |
| 14-BUD | -1410-61 | 14BC14 | 7/8 | 0.86 | 1-3/8 | 7/8 | 0.72 | 1.02 | 2.53 | 1-1/4 | 3.33 |
| 16-BUD | -1610-61 | 16BC16 | 1 | 1.04 | 1-5/8 | 1 | 0.88 | 1.23 | 2.81 | 1-1/2 | 3.77 |
At Ayhan Tube Fittings, we are the leading supplier, manufacturer, and exporter of Bulkhead Union Elbow in Istanbul, Turkey. Our state-of-the-art manufacturing facilities, strategically located in the Turkey, empower us to provide high-quality solutions tailored to your specific requirements. With an extensive inventory of various premium materials, we are well-equipped to meet your needs efficiently. Our dedication to excellence and operational efficiency ensures we consistently maintain available stock, making us your trusted partner for reliable Union Cross fittings in various applications.
Ayhan Tube Fittings is a leading supplier and stockist of premium Bulkhead Union Elbow in Istanbul, Turkey. Our products are widely utilized across various industries, recognized for their strength, durability, and reliable performance in connecting multiple pipe sections. We are committed to delivering exceptional service and ensuring high levels of customer satisfaction. Our advanced manufacturing techniques set us apart in the fittings industry, enabling us to consistently provide top-quality Union Cross fittings while effectively addressing the unique requirements of our customers.
Contact us to get a quick quote for your requirement.
Bulkhead Union Elbows are widely used in various applications due to their versatility and reliability. In marine environments, they facilitate secure pipe connections for water and fuel systems, ensuring leak-free operation. In aquaculture, they are crucial for connecting tanks and water circulation systems, promoting efficient water management. These fittings are also commonly found in industrial settings, enabling quick changes in piping direction while maintaining strong connections under pressure. Additionally, they are ideal for plumbing systems in residential and commercial buildings, where space optimization and effective flow control are essential.
Please feel free to contact us if you need any further information or for enquiry.
