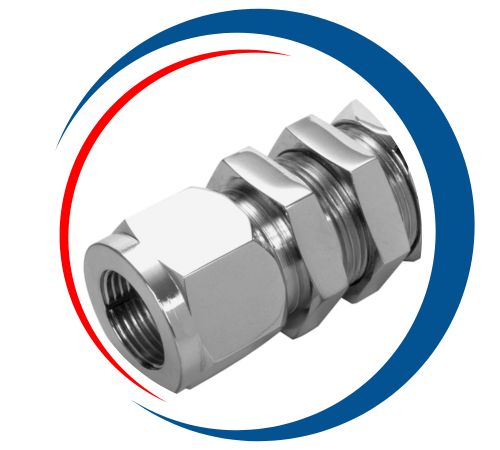

Ayhan Tube Fittings is a trusted manufacturer of quality tube fittings and hydraulic components in Istanbul, Turkey. Specializing in durable high-performance products, we handle a wide range of industrial applications. Our Hydraulic Bulkhead Union assembly is designed for safe leak proof connections to ensure optimal fluid placement in the required hydraulic system. With a commitment to quality, accuracy and customer satisfaction, Ayhan Tube Fittings offers reliable solutions tailored to your specific needs through prompt delivery and exceptional service.
Hydraulic bulkhead Union are usually made of stainless steel or copper for corrosion resistance and durability. Its technical features include high tensile strength, stress resistance and durability in harsh environments. These features ensure a secure leak-proof connection to the walls or frames of a hydraulic system even at high pressures. Advantages include easy installation, reliable installation, and resistance to extreme temperatures and vibrations. They are ideal for aerospace, marine and industrial applications where stable and secure fluid connections are required.
| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | |
| MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 | |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| BODY TYPE | BAR STOCK |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| MATERIAL DESIGNATOR | STAINLESS STEEL – ASTM A 276 , ASTM 182 |
| STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A. | |
| BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771. |
At Ayhan Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Bulkhead Union in Istanbul, Turkey. Our advanced manufacturing facilities, strategically positioned in the Turkey, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| Body Material | Size 1 | Size 2 |
|---|---|---|
| Alloy 400 | 1/16″ | 1/16″ |
| Alloy C-276 | 1/8″ | 1/8″ |
| Brass | 3/16″ | 3/16″ |
| Stainless Steel 316 | 1/4″ | 1/4″ |
| 5/16″ | 5/16″ | |
| 3/8″ | 3/8″ | |
| 1/2″ | 1/2″ | |
| 5/8″ | 5/8″ | |
| 3/4″ | 3/4″ | |
| 1″ | 1″ | |
| 1-1/4″ | 1-1/4″ | |
| 1-1/2″ | 1-1/2″ | |
| 2″ | 2″ | |
| 3mm | 3mm | |
| 4mm | 4mm | |
| 6mm | 6mm | |
| 8mm | 8mm | |
| 10mm | 10mm | |
| 12mm | 12mm | |
| 14mm | 14mm | |
| 15mm | 15mm | |
| 16mm | 16mm | |
| 18mm | 18mm | |
| 20mm | 20mm | |
| 25mm | 25mm | |
| 38mm | 38mm |
Contact us to get a quick quote for your requirement.
Ayhan Tube Fittings is a leading supplier and stockist of premium Hydraulic Bulkhead Union in Istanbul, Turkey. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
Hydraulic bulkhead union are used to create safe, leak-proof connections between hydraulic lines through walls, panels, or bulkheads. They are essential in applications where hydraulic systems must be transported within system constraints, such as aircraft, ships, and industrial equipment This association ensures pressure-free connections in confined and frequently used areas aerospace, marine, oil and gas industries, and construction High pressure, extreme temperatures , and vibration resistance make it ideal for use in harsh environments and systems in need of.
