Ayhan Tube Fittings is a manufacturer and supplier of hydraulic fittings in Istanbul, Turkey, offering the same high quality hydraulic crosses designed for durability and accuracy. Serving industries like oil & gas, construction and manufacturing, Ayhan Tube Fittings is known for its commitment to quality and customer satisfaction. Their Hydraulic Equal Cross meet international standards, ensuring reliable performance in critical applications. With its immense popularity in the market, Ayhan Tube Fittings is the go-to source for reliable water solutions in the Turkey.

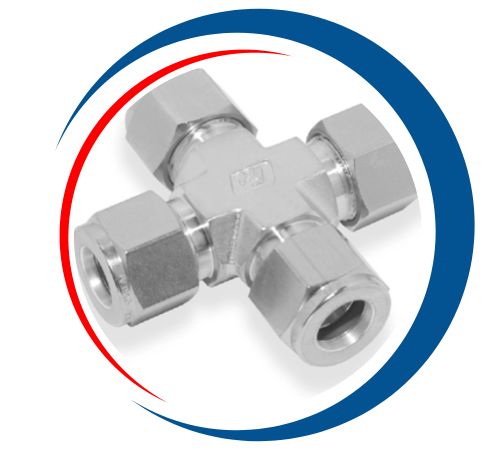

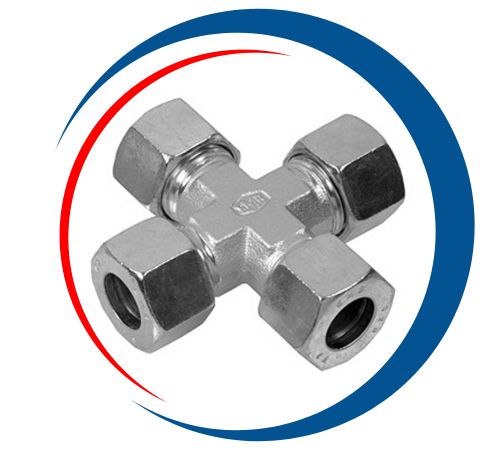

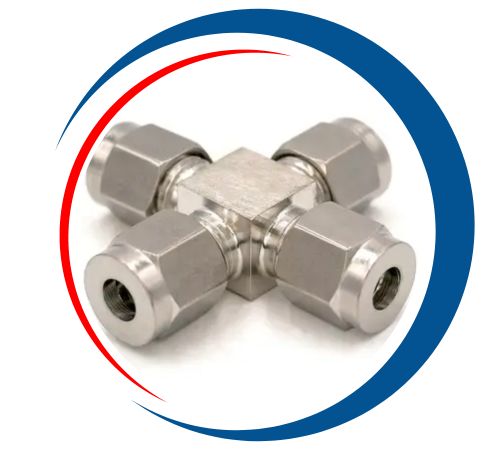

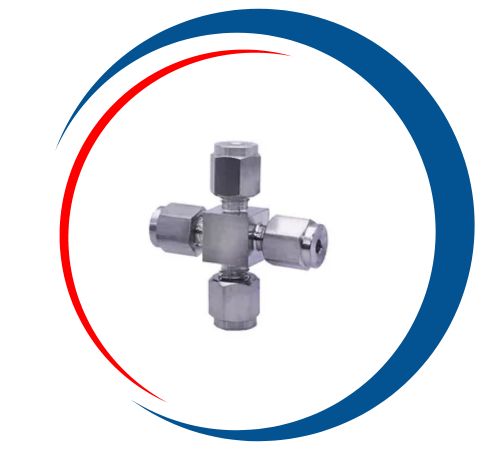

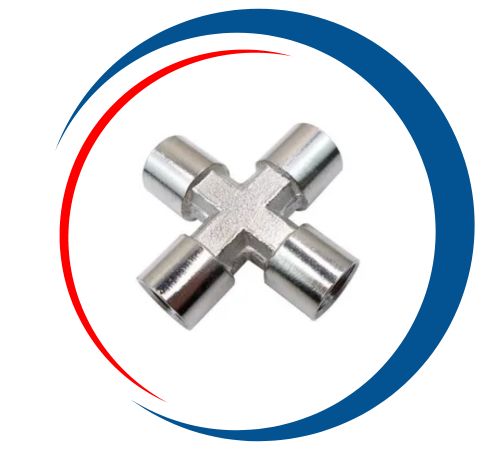

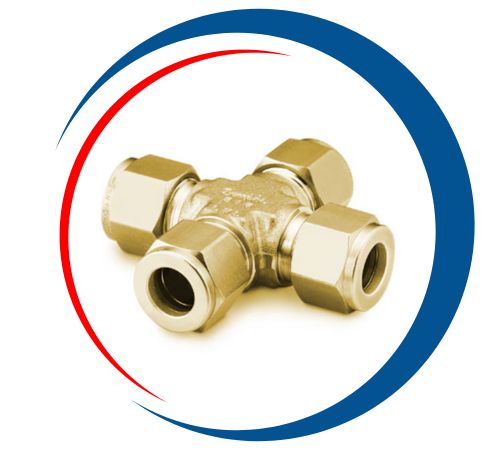

Hydraulic equal cross fittings are typically made from materials like stainless steel, carbon steel, or brass, ensuring durability and resistance to corrosion. Their mechanical properties include high tensile strength and good pressure resistance, making them suitable for various hydraulic applications. The advantages of hydraulic equal crosses include efficient fluid flow, reduced pressure loss, and ease of installation. They provide versatility in piping systems by allowing multiple connections without compromising structural integrity, ensuring reliable performance in both high and low-pressure environments.
| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO TUBE |
| BODY TYPE | FORGED, BAR STOCK |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| EQUIVALENT BRANDS | PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS |
| APPLICATIONS & INDUSTRIES | CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
At Ayhan Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Equal Cross in Istanbul, Turkey. Our advanced manufacturing facilities, strategically positioned in the Turkey, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| Thread | CH | L1 | L2 | T1 | Pressure PN | Weight kg 100pcs | Series |
|---|---|---|---|---|---|---|---|
| Thread F1 | mm | mm | mm | mm | bar | ||
| 12×1,5 | 12 | 12 | 27 | 6 | 315 | 7,8 | L |
| 12×1,5 | 12 | 12 | 27 | 6 | 315 | 7,8 | L |
| 14×1,5 | 12 | 14 | 29 | 8 | 315 | 11,0 | L |
| 14×1,5 | 12 | 14 | 29 | 8 | 315 | 11,0 | L |
| 16×1,5 | 14 | 15 | 30 | 10 | 315 | 15,7 | L |
| 16×1,5 | 14 | 15 | 30 | 10 | 315 | 15,7 | L |
| 18×1,5 | 17 | 17 | 32 | 12 | 315 | 19,5 | L |
| 18×1,5 | 17 | 17 | 32 | 12 | 315 | 19,5 | L |
| 22×1,5 | 19 | 21 | 36 | 15 | 315 | 31,5 | L |
| 22×1,5 | 19 | 21 | 36 | 15 | 315 | 31,5 | L |
| 26×1,5 | 24 | 23,5 | 40 | 18 | 315 | 48,7 | L |
| 26×1,5 | 24 | 23,5 | 40 | 18 | 315 | 48,7 | L |
| 30×2 | 27 | 27,5 | 44 | 22 | 160 | 73,0 | L |
| 30×2 | 27 | 27,5 | 44 | 22 | 160 | 73,0 | L |
| 36×2 | 36 | 30,5 | 47 | 28 | 160 | 101,5 | L |
| 36×2 | 36 | 30,5 | 47 | 28 | 160 | 101,5 | L |
| 45×2 | 41 | 34,5 | 56 | 35 | 160 | 123,5 | L |
| 45×2 | 41 | 34,5 | 56 | 35 | 160 | 123,5 | L |
| 52×2 | 50 | 40 | 63 | 42 | 160 | 176,5 | L |
| 52×2 | 50 | 40 | 63 | 42 | 160 | 176,5 | L |
| 14×1,5 | 12 | 16 | 31 | 6 | 630 | 13,0 | S |
| 14×1,5 | 12 | 16 | 31 | 6 | 630 | 13,0 | S |
| 16×1,5 | 14 | 17 | 32 | 8 | 630 | 17,0 | S |
| 16×1,5 | 14 | 17 | 32 | 8 | 630 | 17,0 | S |
| 18×1,5 | 17 | 17,5 | 34 | 10 | 630 | 24,2 | S |
| 18×1,5 | 17 | 17,5 | 34 | 10 | 630 | 24,2 | S |
| 20×1,5 | 17 | 21,5 | 38 | 12 | 630 | 30,1 | S |
| 20×1,5 | 17 | 21,5 | 38 | 12 | 630 | 30,1 | S |
| 22×1,5 | 19 | 22 | 40 | 14 | 630 | 39,0 | S |
| 22×1,5 | 19 | 22 | 40 | 14 | 630 | 39,0 | S |
| 24×1,5 | 24 | 24,5 | 43 | 16 | 400 | 49,0 | S |
| 24×1,5 | 24 | 24,5 | 43 | 16 | 400 | 49,0 | S |
| 30×2 | 27 | 26,5 | 48 | 20 | 400 | 76,0 | S |
| 30×2 | 27 | 26,5 | 48 | 20 | 400 | 76,0 | S |
| 36×2 | 36 | 30 | 54 | 25 | 400 | 138,0 | S |
| 36×2 | 36 | 30 | 54 | 25 | 400 | 138,0 | S |
| 42×2 | 41 | 35,5 | 62 | 30 | 400 | 172,0 | S |
| 42×2 | 41 | 35,5 | 62 | 30 | 400 | 172,0 | S |
| 52×2 | 50 | 41 | 72 | 38 | 315 | 269,0 | S |
| 52×2 | 50 | 41 | 72 | 38 | 315 | 269,0 | S |
Contact us to get a quick quote for your requirement.
Ayhan Tube Fittings is a leading supplier and stockist of premium Hydraulic Equal Cross in Istanbul, Turkey. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
Hydraulic equal crosses are widely used in hydraulic systems to connect multiple pipes or hoses at a single junction, facilitating fluid flow in various directions. Common applications include construction machinery, agricultural equipment, and industrial hydraulic systems. They are also utilized in automotive systems for power steering and brake lines. These fittings help maintain balanced pressure and ensure efficient fluid transfer, making them essential for systems requiring reliable operation and minimal pressure loss. Additionally, they support versatility in design, allowing for complex piping layouts in confined spaces.
