Incoloy Tube Fittings

Home > Incoloy > Incoloy Tube Fittings

Ayhan Tube Fittings is a reliable Istanbul, Turkey-based manufacturer and supplier of high-quality Incoloy Tube Fittings. They are highly recognized for being durable and of the highest quality. Ayhan’s Incoloy fittings are designed to be of high international standards. With their intended use in high-performance industries, these tube fittings form leak-free connections at harsh temperatures and pressures. With years of expertise and advanced manufacturing technology, Ayhan provides sound and corrosion-resistant Incoloy fittings that are perfect for critical applications. Manufacturers across the globe trust Ayhan for uninterrupted supply, exacting manufacture, and cost-effectiveness, establishing it as a front runner in the tube fitting industry.

Incoloy Instrumentation Tube Fittings Supplier in Istanbul, Incoloy Double Ferrule Tube Fittings Price List in Ankara, Incoloy Back Ferrule Manufacturer in İzmir, Incoloy Single Ferrule Fittings In Antalya, Incoloy Bulkhead Union, Incoloy Ferrule Fittings Exporter in Ankara, Incoloy Instrumentation Fittings Manufacturer in Bursa, Incoloy Compression Tube Fittings in Istanbul, Turkey.

Incoloy tube fittings consist mainly of nickel (38-46%), chromium (19-23%), and iron, with small amounts of molybdenum, copper, and titanium. This alloy has excellent carburization and oxidation resistance. Its mechanical properties are tensile strength of approximately 585 MPa, yield strength of 240 MPa, and elongation of 30%. Incoloy fittings are structurally sound under operating temperatures and pressures. Their superior corrosion resistance makes them ideal for severe chemical conditions, providing both long-term performance and strength without failure or degradation with time.

Incoloy Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8250 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Incoloy Tube Fittings	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Incoloy Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Incoloy Tube Fittings

Incoloy Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy Tube Fittings	N08825	2.4858	NC22DNB4M	NiCr22Mo9Nb	NCF 825	NA 21	ЭП703	ЭИ602

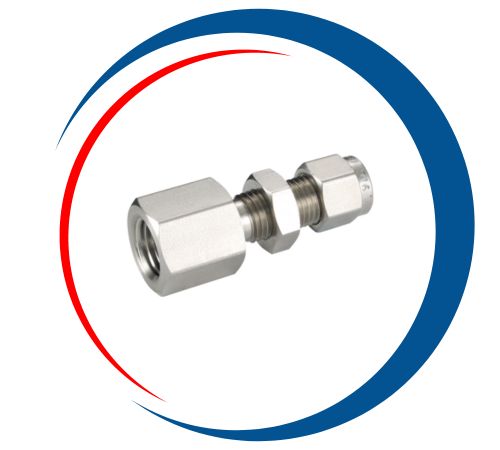

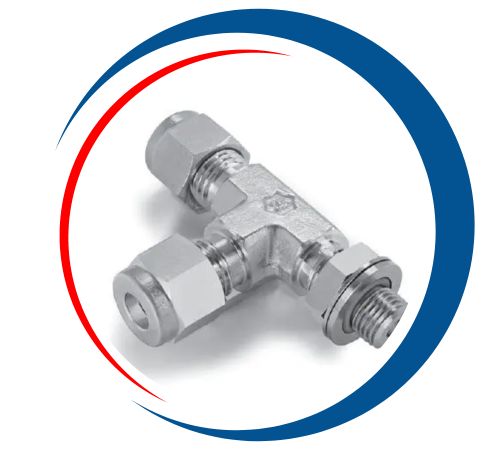

Incoloy Bulkhead Union, Incoloy Alloy Tube To Union, Incoloy Instrumentation Tube Fittings Price in Istanbul, Incoloy Male Branch Tee Supplier in Ankara, Incoloy Bulk Head Female Connector Manufacturer in İzmir, Incoloy Single Ferrule Tube Fittings Price in Antalya, Incoloy Male Run Tee Supplier And Manufacturer in Bursa, Incoloy Male Elbow In Istanbul, Turkey.

Largest Manufacturer and Supplier of Incoloy Tube Fittings in Istanbul, Turkey

At Ayhan Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy Tube Fittings in Istanbul, Turkey. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Turkey, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy Tube Fittings Uses

Incoloy Tube Fittings are widely used in industries requiring resistance to high temperatures and corrosive environments. In chemical processing, they are essential for handling corrosive acids and fluids in heat exchangers, piping systems, and reactors. The oil & gas sector utilizes these fittings in sour gas service, offshore platforms, and pipelines due to their resistance to seawater and harsh chemicals. Additionally, Incoloy Tube Fittings are used in marine engineering, nuclear power plants, and pollution control systems, providing reliable performance under extreme conditions such as high pressure and temperature.
