Inconel Condensate Pots

Home > Inconel > Inconel Condensate Pots

Ayhan Tube Fittings is a leading manufacturer and distributor specializing in quality Inconel condensate. Committed to providing excellence, we deliver robust solutions designed for complex industrial applications. Our chilled molds are manufactured with Inconel, renowned for exceptional strength and corrosion resistance, ensuring reliable performance even in harsh environments Our expert team puts customer satisfaction first , offers solutions tailored to meet specific project requirements. With years of experience and focus on innovation, Ayhan Tube Fittings remains a trusted partner for businesses seeking sustainable and efficient condensate management solutions. Experience the difference with our high quality products.

Inconel Type A Condensate Pot with Zinc Plating Manufacturer Istanbul, Inconel Condensate Pot Type B Dealer Ankara, Inconel Type C Condensate Pots with 4 Ports Manufacturer Supplier İzmir, 600 Inconel Condensate Pots Type A Exporter In Antalya, Inconel Type B Condensate Pot with Galvanized Plating Manufacturer Bursa, Inconel Type C Condensate Pot with Red Oxide Coated In Istanbul, Turkey.

Inconel concentrates are made primarily from nickel-chromium alloys, which often contain elements such as molybdenum and steel, which enhance their corrosion resistance and strength Technical properties include high tensile strength, excellent fatigue resistance, and temperatures up to 2,000°F (1,093 °C). Advantages of Inconel condensates include excellent durability in extreme temperatures and corrosive environments, reduced maintenance costs, long shelf life Harsh condition tolerance making it ideal for a variety of applications in industries such as oil and gas, chemical processing and power generation

Inconel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Inconel Condensate Pots Chemical Composition

Grade	Ni	Cr	Fe	C	Mn	S	Si	Cu
Inconel Condensate Pots	72.0 min	14.0 – 17.0	6.0 – 10.0	0.15 max	1.0 max	0.015 max	0.5 max	0.5 max

Sizing Of Inconel Condensing Pots

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

Top Inconel Condensate Pots Manufacturing Company in Istanbul

At Ayhan Tube Fittings, we are the largest supplier, manufacturer, and exporter of Inconel Condensate Pots in Istanbul, Turkey. Our advanced manufacturing facilities, strategically positioned in the Turkey, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

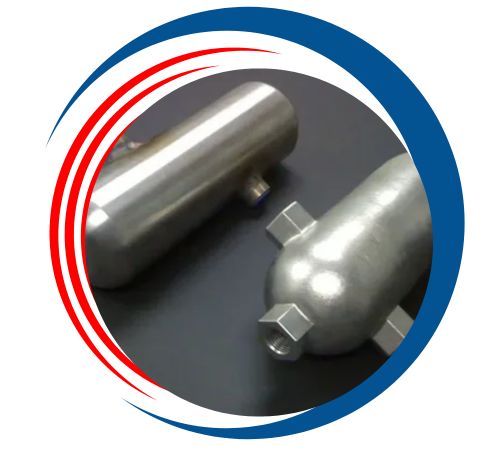

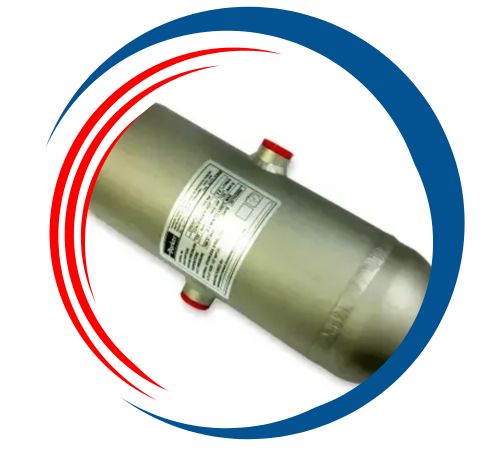

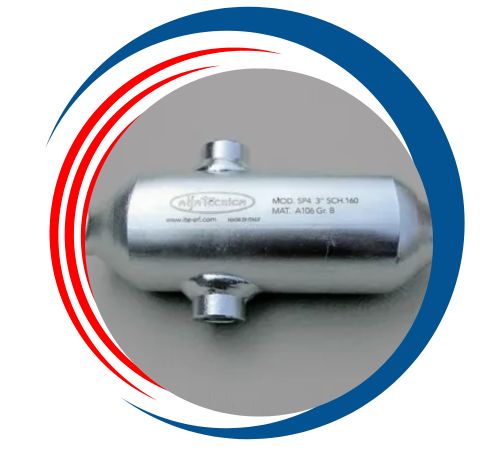

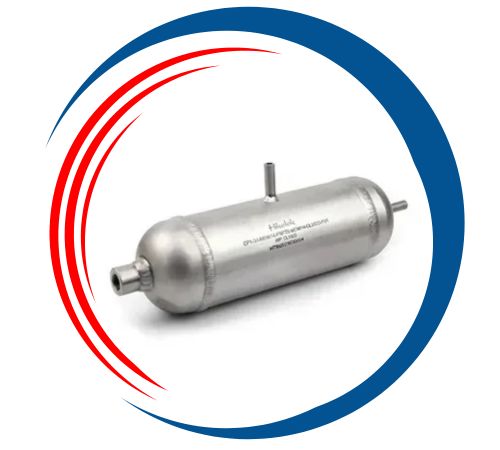

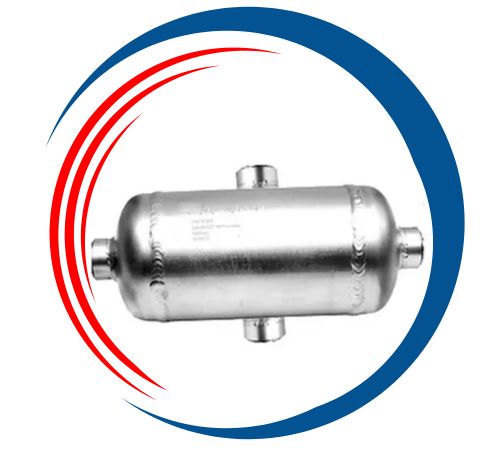

Types of Inconel Condensate Pots

Equivalent Grades of Inconel Condensate Pots

STANDARD	UNS	WERKSTOFF NR.	JIS	AFNOR	BS	GOST	EN
Inconel Condensate Pots	N06600	2.4816	NCF 600	NC15FE11M	NA 13	МНЖМц 28-2,5-1,5	NiCr15Fe

Inconel Condensate Pot Type A Price in Istanbul, Inconel Type B Condensate Pot with Zinc Plating Manufacturer Supplier in Ankara, Alloy 800 Type C Condensate Pots Manufacturer in İzmir, Inconel Type A Condensate Pot with Galvanized Plating Price in Antalya, Inconel Type B Condensate Pot with Red Oxide Coated Supplier And Manufacturer in Bursa, 601 Inconel Type C Condensate Pot In Istanbul, Turkey.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Inconel Condensate Pots Supplier in Istanbul, Turkey

Ayhan Tube Fittings is a leading supplier and stockist of premium Inconel Condensate Pots in Istanbul, Turkey. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Inconel Condensate Pots Uses

Inconel condensates are widely used in a variety of industrial applications due to their exceptional corrosion resistance and high temperature stability It is important in the oil and gas industry to collect sludge from pipelines and fractures , prevent obstruction and ensure smooth flow. In addition, it is used in power plants to optimize steam generation systems. Their reliability and durability make them suitable for applications that require stringent safety and performance standards, increasing overall operational efficiency.
