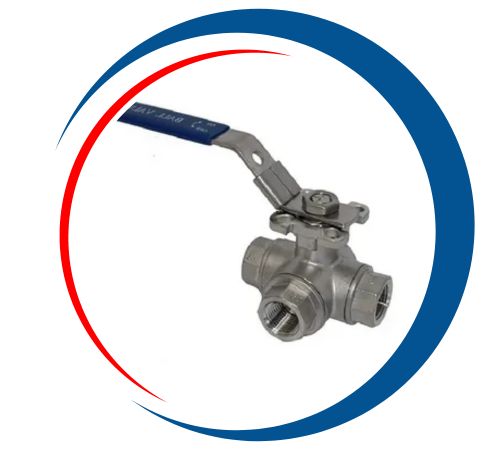

L Port Type Ball Valve

Home > L Port Type Ball Valve

Ayhan Tube Fittings, located in Istanbul, Turkey, stands out as a reputable manufacturer and supplier of top-notch L Port Type Ball Valves. Known for their precision engineering and sturdy construction, the company guarantees that each valve adheres to strict industrial standards. Their L Port Type Ball Valves are crafted to ensure dependable flow control and directional switching in intricate piping systems, delivering outstanding performance even in tough environments. With a strong focus on innovation, quality, and customer satisfaction, Ayhan Tube Fittings caters to a variety of sectors, including chemical, petrochemical, and instrumentation industries, offering solutions that blend efficiency, safety, and long-lasting reliability.

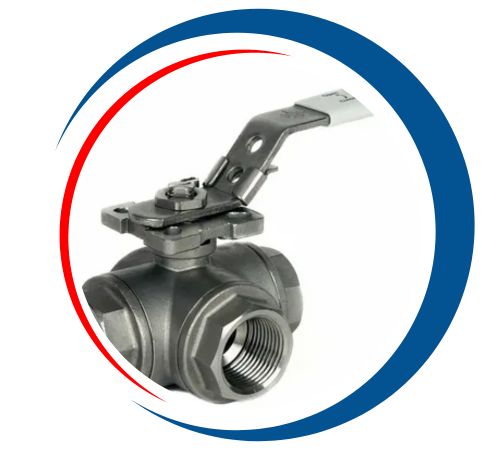

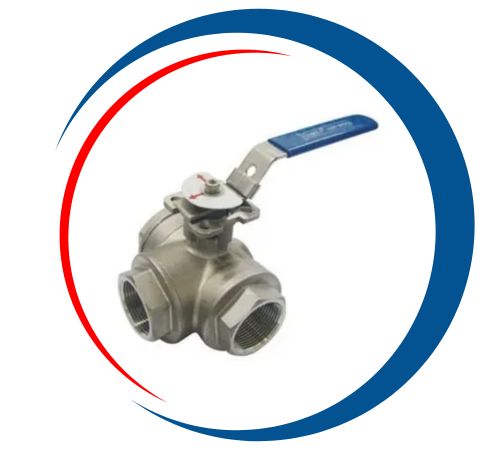

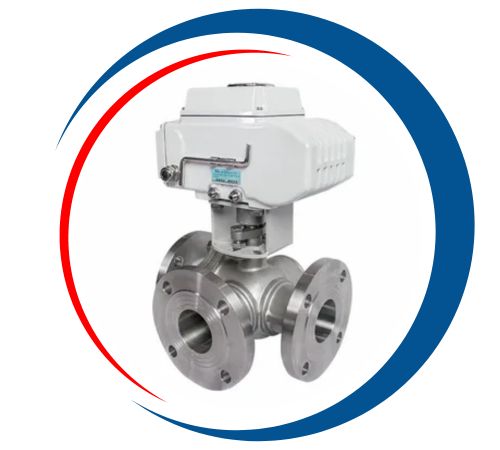

L Port Type Ball Valve Supplier in Istanbul, SAE Flanged End Ball Valve Price List in Ankara, 3 way L-port Floating Ball Valve Manufacturer in İzmir, ASTM A193 GR.B8M Ball Valve in Antalya, ASTM A194 GR.8M Ball Valve Exporter in Ankara, ASTM A182 SS316 Ball Valve Manufacturer in Bursa, ASTM A182 SS316 Ball Valve In Istanbul, Turkey.

The L Port Type Ball Valves from Ayhan Tube Fittings are generally made from high-quality stainless steel, brass, or alloy materials, which provide excellent resistance to corrosion and durability. These valves boast impressive mechanical properties, such as high-pressure tolerance, precise sealing capabilities, and smooth rotational torque. Built to endure extreme temperatures and harsh media, they maintain their structural integrity and leak-proof performance. Their compact yet sturdy design allows for repeated use without deformation, while the polished internal surfaces reduce wear and friction, ensuring steady flow control. This combination of superior materials and mechanical strength makes them a trustworthy choice for industrial applications.

L Port Type Ball Valve Specification

TYPE :	3 way L-port Floating Ball Valve
Configuration :	L-port, Divertor Type, 2 seat Construction
PORT :	Full Bore
SIZE :	15 mm to 200mm NB
Pressure Rating :	ASME#150PN 20 ASME#300PN 50
Temperature Range	35 Deg C to 280 Deg C (Soft Seated)
Body Materials	Stainless Steel / Carbon Steel / Alloys
Design Standard	API 6D rev 23; ISO 17292 rev 2004
End Flanges	ASME B16.5 2013
Face to Face Dimension	ASME B16.10 Rev 2009
Fire safe design	API-607 Rev 2010
Testing	API 598 Rev 2009
Sour Service	NACE MOR 0175 Rev 2009
Documents	BS/EN 10204-3.1 REV 2004

L Port Type Ball Valve Supplier in Istanbul, SAE Flanged End Ball Valve Price List in Ankara, 3 way L-port Floating Ball Valve Manufacturer in İzmir, ASTM A193 GR.B8M Ball Valve in Antalya, ASTM A194 GR.8M Ball Valve Exporter in Ankara, ASTM A182 SS316 Ball Valve Manufacturer in Bursa, ASTM A182 SS316 Ball Valve In Istanbul, Turkey.

Top L Port Type Ball Valve Manufacturing Company in Istanbul

At Ayhan Tube Fittings, we are the largest supplier, manufacturer, and exporter of L Port Type Ball Valve in Istanbul, Turkey. Our advanced manufacturing facilities, strategically positioned in the Turkey, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands

Material Code for L Port Type Ball Valve

SR.NO.	PART NAME	STAINLESS STEEL	CARBON STEEL	QTY
1	BODY	ASTM A351 CF8M	ASTM A216 WCB	1
2	END CONN.	ASTM A351 CF8M	ASTM A216 WCB	1
3	BALL	ASTM A182 SS316	ASTM A182 SS316	1
4	STEM	ASTM A182 SS316	ASTM A182 SS316	1
5	SEAT	PTFE	PTFE	2
6	STEM SEAL	GRAPHITE	GRAPHITE	2
7	GLAND	SS316	MS	1
8	GLAND BEARING	DELRIN	DELRIN	1
9	SPACER	SS316	SS316	1
10	STEM THRUST WASHER	GFT	GFT	1
11	BODY SEAL	GRAPHITE	GRAPHITE	1
12	STEM O-RING	VITON	VITON	1
13	END CONN. O-RING	VITON	VITON	1
14	STUD	ASTM A193 GR.B8M	ASTM A193 GR.B7	6
15	NUT	ASTM A194 GR.8M	ASTM A194 GR.2H	6
16	LEVER	SS410	SS410	1
17	STOPER	MS	MS	1

Types of L Port Type Ball Valve

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Material Code for L Port Type Ball Valve

Nominal Diameter (mm)	Nominal Diameter (inch)	Kv (m3/h)	Cv (gal/min)
15	1/2″	19,4	22,6
20	3/4″	45,6	53,0
25	1″	71,5	83,1
32	1 1/4″	105	122,1
40	1 1/2″	170	197,7
50	2″	275	319,8
65	2 1/2″	507	589,5
80	3″	905	1052,3
100	4″	1414	1644,2
125	5″	2362	2746,5
150	6″	3694	4295,3

L Port Type Ball Valve Supplier in Istanbul, Turkey

Ayhan Tube Fittings is a leading supplier and Stockist of premium L Port Type Ball Valve in Istanbul, Turkey. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

L Port Type Ball Valve Uses

L Port Type Ball Valves are commonly utilized to direct flow between two or more pipelines in process systems. They are particularly suited for industries like chemical processing, oil and gas, pharmaceuticals, and water treatment, where accurate flow control and switching are essential. These valves facilitate efficient fluid diversion, mixing, or isolation within piping networks, enhancing operational flexibility. Their user-friendly operation, minimal maintenance needs, and extended service life make them ideal for high-pressure and high-temperature systems.
