Monel Ball Valve

Home > Monel > Monel Ball Valve

Ayhan Tube Fittings, located in Istanbul, Turkey, has built a solid reputation as a reliable manufacturer and supplier of top-notch Monel Ball Valves. With years of expertise in precision engineering and metal fabrication, this company is dedicated to providing durable and dependable valve solutions tailored for tough industrial settings. Their Monel Ball Valves are crafted to deliver outstanding performance in corrosive and high-pressure situations, ensuring they last long and operate efficiently. By blending cutting-edge manufacturing methods with strict quality control, Ayhan Tube Fittings guarantees products that comply with international standards, serving a diverse array of industries such as chemical, marine, and petrochemical.

Monel Instrumentation Ball Valve Manufacturer in Istanbul, Monel Alloy Compression Ball Valve in Antalya, Monel Hydraulic Ball Valve Supplier in Ankara, Monel High Pressure Ball Valve Price List in Istanbul, Monel 2 Way Ball Valve Price in Antalya, Monel Alloy 3 Way Ball Valve in Istanbul, Turkey, Monel 4 Way Ball Valve Price in İzmir, Monel 5 Way Ball Valve Supplier in Ankara, Monel High Pressure Ball Valve Price List in Bursa

Monel Ball Valves are mainly made from nickel-copper alloys, typically featuring about 67% nickel and 33% copper, along with trace amounts of iron, manganese, and carbon. This unique blend gives the valves remarkable resistance to corrosion, especially against seawater, hydrofluoric acid, and alkaline solutions. On the mechanical side, Monel Ball Valves boast high tensile strength, good ductility, and toughness across a broad temperature spectrum. They also resist pitting, scaling, and erosion, maintaining their structural integrity even under high-pressure and high-temperature conditions. These characteristics make Monel an excellent choice for valves used in harsh chemical and marine environments.

Monel Ball Valve Specifications

STANDARD	ASTM A494 / ASME SA494 API 600/BS1414, ASME B 16.34, ASME B 16.10, ASME B 16.5, API 598/BS EN 12266-1,ASME B 16.25
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Monel Ball Valve Chemical Composition

Material	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

Monel Ball Valve Mechanical Properties

Element	Yield Strength (0.2%Offset)	Melting Point	Density	Elongation	Tensile Strength
Monel	Psi – 35,000 , MPa – 240	1350 °C (2460 °F)	8.8 g/cm3	40 %	Psi – 80,000 , MPa – 550

Monel Ball Valve Equivalent

STANDARD

WNR Material Number

UNS

JIS

GOST

AFNOR

Monel 400

2.4360

N04400

NW 4400

NA 13

МНЖМц 28-2,5-1,5

NU-30M

NiCu30Fe

Top Monel Ball Valve Manufacturing Company in Istanbul

At Ayhan Tube Fittings, we are the largest supplier, manufacturer, and exporter of Monel Ball Valve in Istanbul, Turkey. Our advanced manufacturing facilities, strategically positioned in the Turkey, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

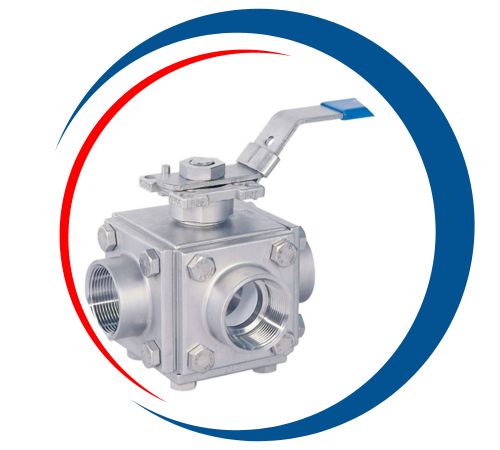

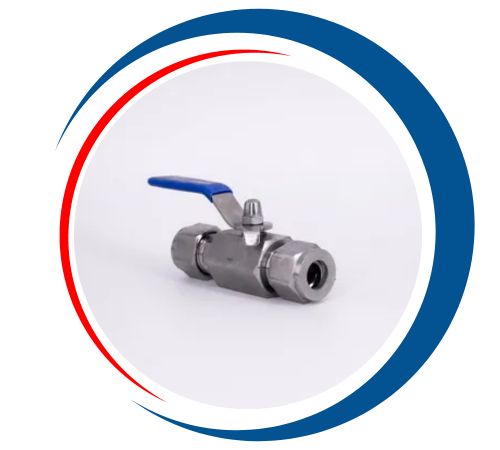

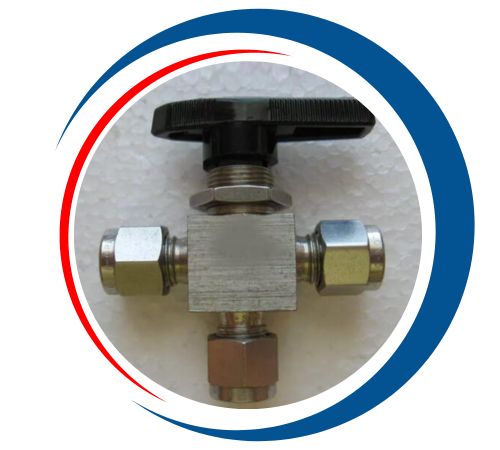

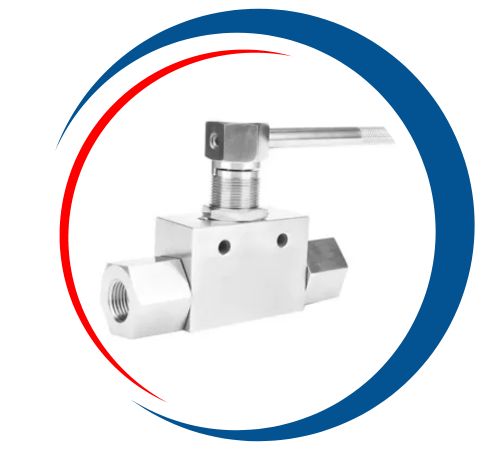

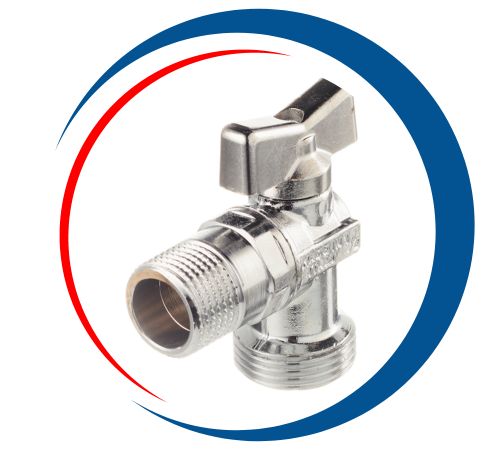

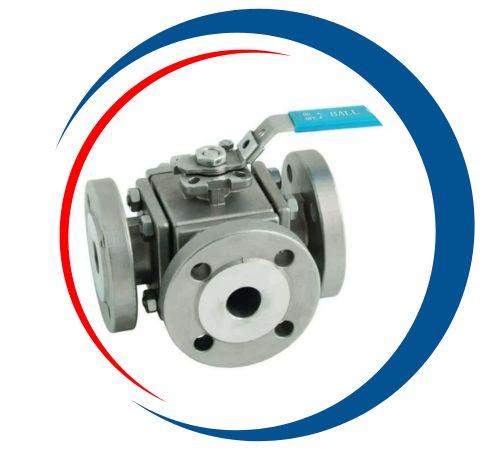

Types of Monel Ball Valve

Monel Alloy High Pressure Ball Valve in Antalya, Monel 2 Way Ball Valve Supplier in Ankara, Monel 3 Way Ball Valve in Istanbul, Turkey, Monel Alloy 3 Way Ball Valve Price List in Istanbul, Monel 5 Way Ball Valve Price in Antalya, Monel Instrumentation Ball Valve Price in İzmir, Monel Compression Ball Valve Supplier in Ankara, Monel Hydraulic Ball Valve Manufacturer in Istanbul

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Ball Valve in Istanbul, Turkey

Ayhan Tube Fittings is a leading supplier and stockist of premium Monel Ball Valve in Istanbul, Turkey. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Monel Ball Valves Uses

Monel Ball Valves find extensive use in industries that demand exceptional corrosion resistance and reliable flow control. They are perfect for marine applications, such as seawater systems, desalination plants, and offshore oil and gas operations. In the realm of chemical processing, they manage aggressive acids and alkalis, ensuring safe and leak-free performance. Power generation facilities and the pharmaceutical sector also depend on Monel Ball Valves for precise control of corrosive fluids. Their strength and durability make them ideal for both critical and routine operations, ensuring long-term efficiency and reducing maintenance needs.
