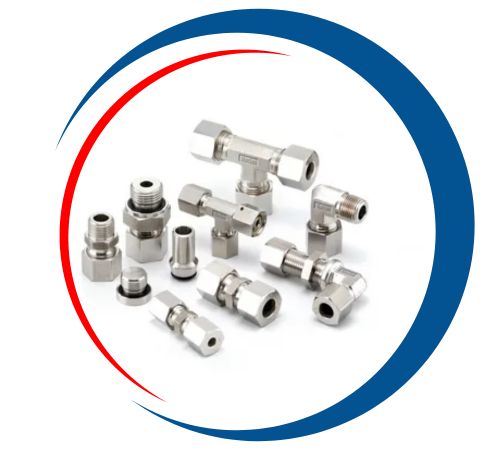

Ayhan Tube Fittings, located in Istanbul, Turkey, has built a solid reputation as a manufacturer and supplier of top-notch Monel Hydraulic Fittings. These fittings are celebrated for their exceptional corrosion resistance and durability. With a strong background in precision engineering and cutting-edge production methods, the company provides fittings that guarantee reliability in even the most demanding hydraulic systems. Designed to withstand extreme pressure and temperature, these fittings are perfect for critical applications across various industries. Ayhan Tube Fittings prioritizes international quality standards, prompt delivery, and a customer-centric approach, making it a trusted ally for global clients in the marine, chemical, and industrial sectors.
Monel Hydraulic Fittings are primarily made up of nickel (about 63%) and copper (28–34%), along with trace amounts of iron, manganese, silicon, and carbon, which boost their strength and resistance to corrosion. They boast impressive mechanical properties, including high tensile strength, remarkable resistance to seawater and acidic environments, and outstanding durability under stress. These fittings maintain their toughness across a broad temperature range and offer excellent resistance to oxidation, making them ideal for heavy-duty hydraulic systems where reliability and performance are crucial.
| DESIGN STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MONEL 400, MONEL K500 |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE |
| WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL | |
| BODY TYPE | FORGED, BAR STOCK |
| SURFACE | EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH |
| Designation | C% | Co% | Cr% | Mo% | Ni% | V% | W% | Ai% | Cu% | Nb/Cb Ta% | Ti% | Fe% | Sonstige Autres-Other % |
| Monel 400 | 0.12 | – | – | – | 65.0 | – | – | – | 32.0 | – | – | 1.5 | Mn 1.0 |
| Monel 401 | 0.10 | – | – | – | 43.0 | – | – | – | 53.0 | – | – | 0.75 | Si 0.25; Mn 2.25 |
| Monel 404 | 0.15 | – | 52.0-57.0 | – | – | 0.05 | rest/bal | – | – | 0.50 | Mn 0.10; Si 0.10;S o.024 | ||
| Monel 502 | 0.10 | – | – | – | 63.0-17.0 | – | – | 2.5-3.5 | rest/bal | – | 0.50 | 2.0 | Mn 1.5;Si 0.5; S 0.010 |
| Monel K 500 | 0.13 | – | – | – | 64.0 | – | – | 2.8 | 30.0 | – | 0.6 | 1.0 | Mn 0.8 |
| Monel R 405 | 0.15 | – | – | – | 66.0 | – | – | – | 31.0 | – | – | 1.2 | Mn 1.0; S 0.04 |
| Tensile strength, Ultimate | 550 Mpa |
| Tensile strength, Yield | 240 Mpa |
| Elongation at Break | 48% |
| Color/appearance | Gray [6] |
| Luster | Metallic [9] |
| Melting point | 1300 – 1350°C [1] |
| Density | 8.80X103 kg/m3 [2] |
| State of matter at room temperature (normal phase) | Solid [9] |
| Hardness | 110-150 HB [7] |
| Thermal Conductivity | 21.8 W/(m K) [1] |
| Resistivity | 54.7X10-8 ohm-m [2] |
| Tensile strength (annealed) | 550 MPa [2] |
| Specific heat capacity | 427 J/(kg*K) [2] |
| Modulus of elasticity | 179 GPa [2] |
|
STANDARD
|
WERKSTOFF NR.
|
UNS
|
JIS
|
BS
|
GOST
|
AFNOR
|
EN
|
|
Monel 400
|
2.4360
|
N04400
|
NW 4400
|
NA 13
|
МНЖМц 28-2,5-1,5
|
NU-30M
|
NiCu30Fe
|
|
Monel K500
|
2.4375
|
N05500
|
–
|
–
|
–
|
–
|
–
|
Contact us to get a quick quote for your requirement.
Monel Hydraulic Fittings find extensive use in industries that require high performance and resilience against harsh conditions. They’re commonly utilized in marine engineering for hydraulic systems exposed to seawater, in chemical processing plants dealing with corrosive fluids, and in the oil and gas sectors where fittings must withstand high pressures and tough environments. Additionally, they are employed in power generation, aerospace, and defense applications that demand leak-proof and durable hydraulic connections. Their versatility and longevity make them the go-to choice for critical operations where safety and efficiency are of utmost importance.
Please feel free to contact us if you need any further information or for enquiry.
