Nickel BSP / NPT Fittings

Home > Nickel Alloy > Nickel BSP / NPT Fittings

Ayhan Tube Fittings, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of premium Nickel BSP / NPT Fittings, serving a variety of industrial sectors around the globe. Known for their precision engineering and durability, Ayhan Tube Fittings provides an extensive selection of threaded connections that meet rigorous standards for pressure, temperature, and corrosion resistance. Their Nickel BSP / NPT Fittings are designed to ensure reliable, leak-free performance in critical fluid and gas applications. With a strong focus on quality, timely delivery, and customer satisfaction, Ayhan Tube Fittings has built a reputation as a trusted partner for industries that need robust and dependable nickel-based fittings.

Nickel 150lb BSP Square Head Plug Fittings Manufacturer Istanbul, Nickel 201 NPT Screwed Cross Dealer Ankara, ASTM B564 Nickel 201 NPT Threaded Union Supplier İzmir, ASTM B564 Nickel Alloy 201 NPT Pressure Plugs Exporter In Antalya, Nickel Alloy 201 BSP Equal Cross Bursa, 201 Nickel Alloy MSS SP-83 NPT Thread Union Istanbul, Turkey.

These Nickel BSP / NPT Fittings are primarily made from high-purity nickel, often mixed with small amounts of iron, carbon, and other elements to boost strength and corrosion resistance. They showcase impressive mechanical properties, including high tensile and yield strength, exceptional hardness, and notable ductility. These fittings maintain their shape under high temperatures and resist deformation even under heavy loads. Thanks to nickel’s natural resistance to oxidation and corrosion in acidic, alkaline, and saline environments, these fittings are perfect for long-term use in demanding industrial settings without significant wear or deterioration.

Nickel BSP / NPT Fittings Specifications

Specifications: ASTM B564/ ASME SB564
Size: 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Dimensions : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Types : Socketweld Fittings, Screwed-Threaded Fittings
Pressure Rating: Threaded End-2000lb/ 3000lb/ 6000lbs /
Socket-weld End-3000/ 6000/ 9000lbs
Thread: NPT, BSPT, BSPP

Nickel BSP / NPT Fittings Chemical Composition

Nickel BSP / NPT	Ni	C	Mo	Mn	Si	Fe	P	S	Cu	Cr
Nickel BSP / NPT	99.0 min	0.15 max	–	0.35 max	0.1 max	0.4 max	–	0.01 max	0.25 max	–

Nickel BSP / NPT Fittings Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.9 g/cm3	1446 °C (2635 °F)	Psi – 21500 , MPa – 148	Psi – 67000 , MPa – 462	45 %

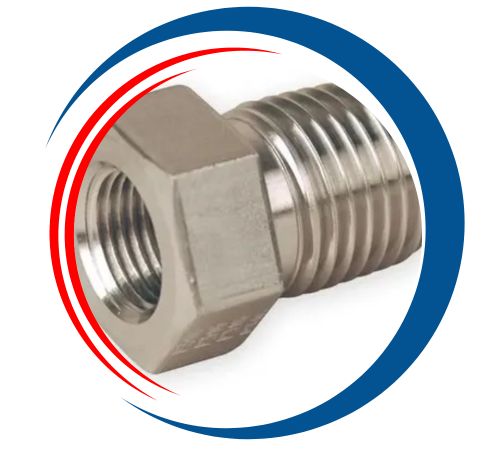

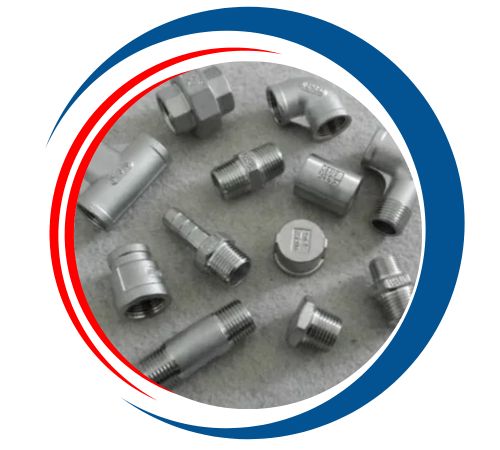

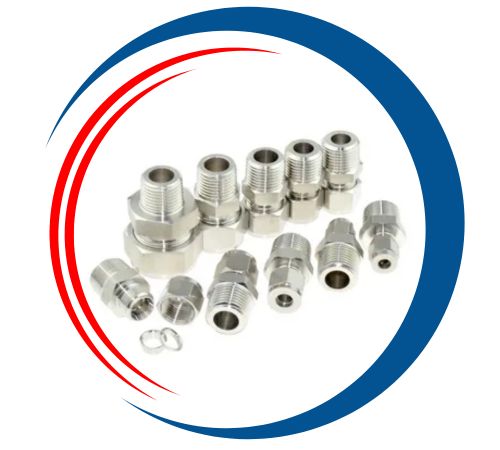

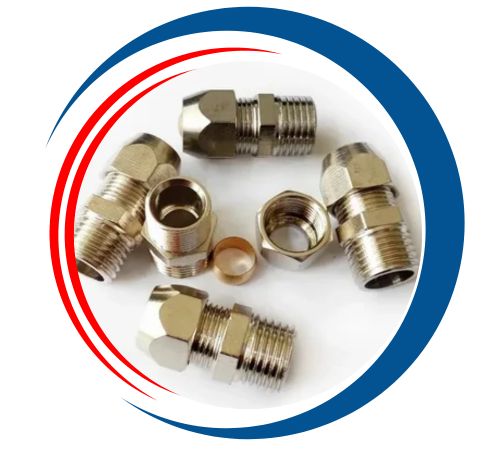

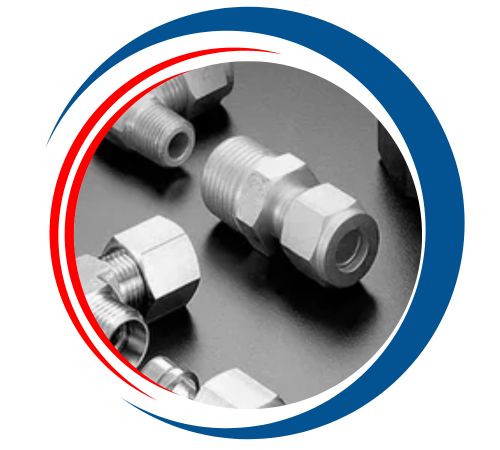

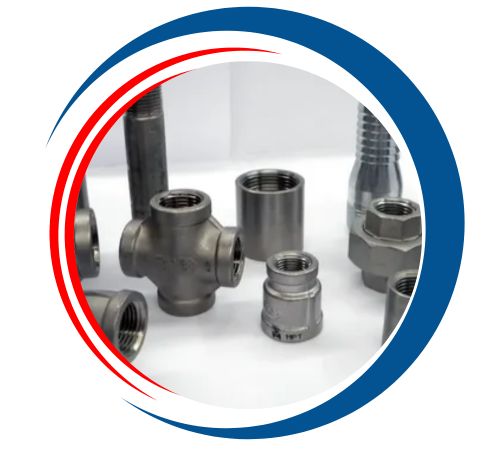

Types of Nickel BSP / NPT Fittings

Equivalent Grades of Nickel BSP / NPT Fittings

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel 200	2.4066	N02200	NW 2200	NA 11	НП-2	N-100M	Ni 99.2
Nickel 201	2.4068	N02201	NW 2201	NA 12	НП-2	–	LC-Ni 99

201 Nickel NPT Threaded Plug Price in Istanbul, Alloy 200 BSP / NPT Cross Manufacturer Supplier in Ankara, Nickel 200 BSP Hex Union Manufacturer in İzmir, Hastelloy NPT 45 Degree Forged Elbow Fittings Price in Antalya, Nickel Alloy 200 NPT Screwed Plug Supplier And Manufacturer in Bursa, ANSI B16.11 Nickel 200 NPT x BSP Cross In Istanbul, Turkey.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Nickel BSP / NPT Fittings in Istanbul, Turkey

At Ayhan Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Nickel BSP / NPT Fittings in Istanbul, Turkey. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Turkey, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Nickel BSP / NPT Fittings Uses

Nickel BSP / NPT Fittings find their place in various industries, including chemical processing, petrochemical, marine, and power generation, where corrosion resistance and reliability are paramount. They are perfect for connecting pipes, tubes, and valves in high-pressure and high-temperature systems, ensuring a leak-free transfer of fluids and gases. These fittings are frequently used in seawater systems, chemical reactors, heat exchangers, and offshore platforms due to their resilience against harsh conditions. Additionally, they are essential in pharmaceutical, food, and beverage applications where purity and contamination-free connections are crucial, making Nickel BSP / NPT Fittings a go-to choice for many industries.
